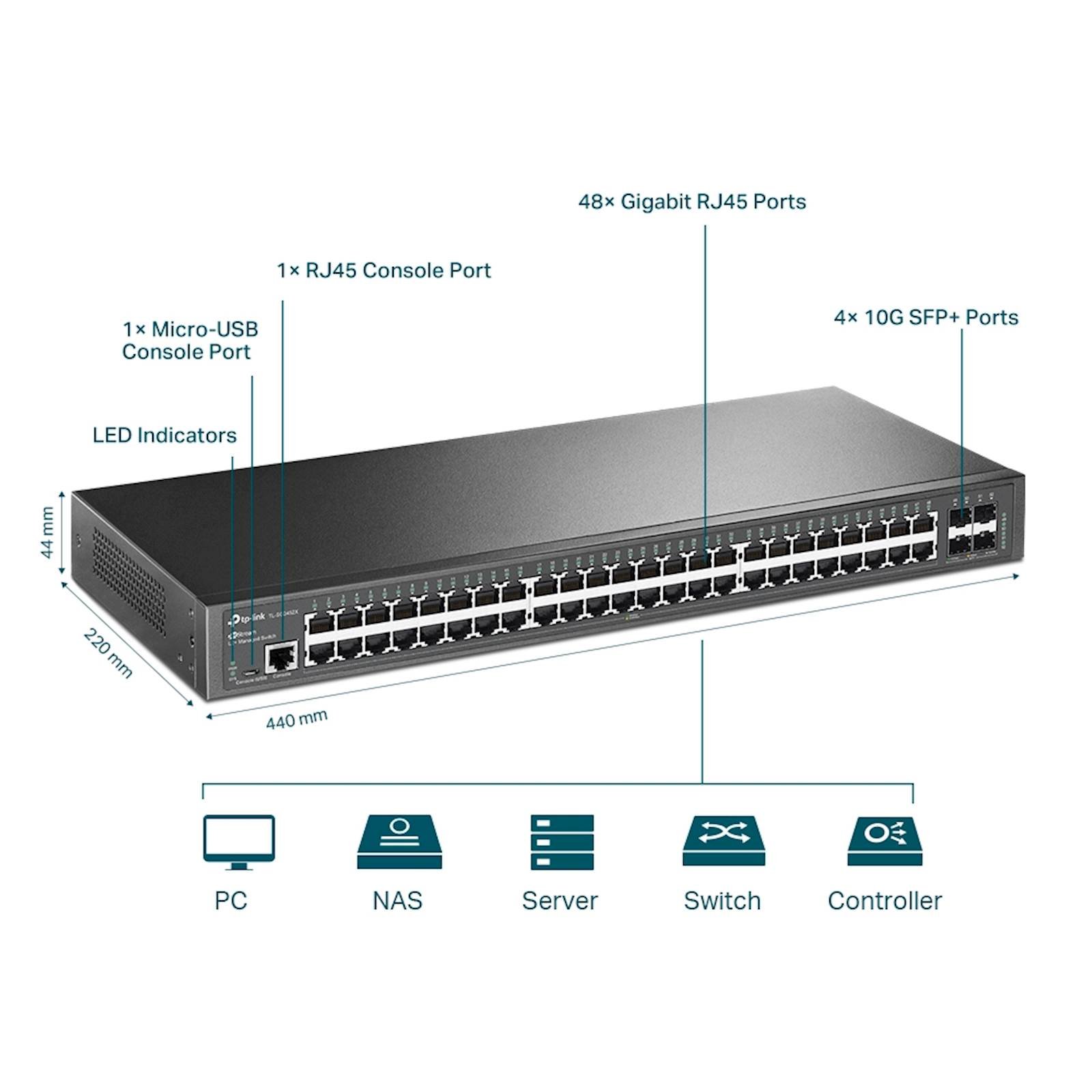

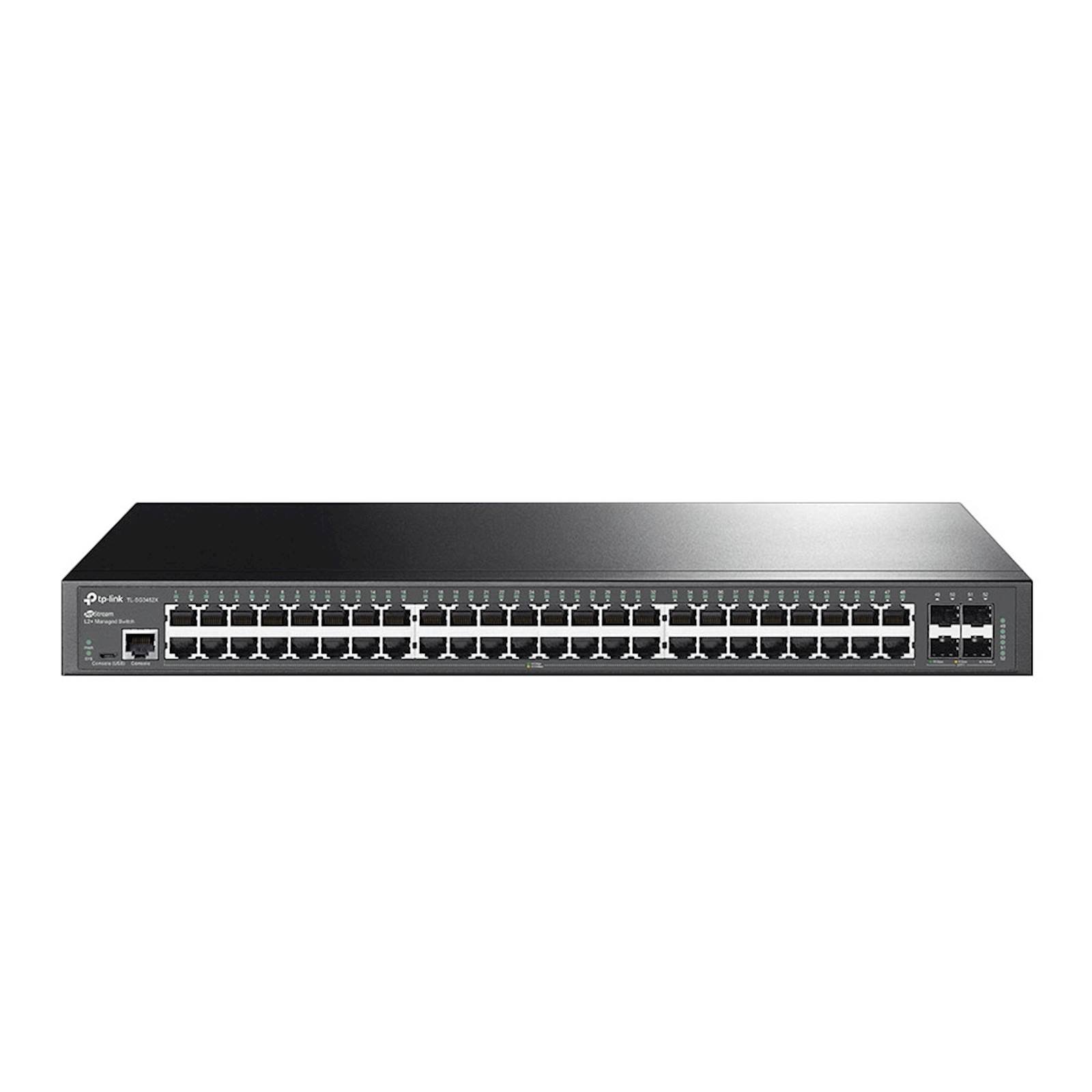

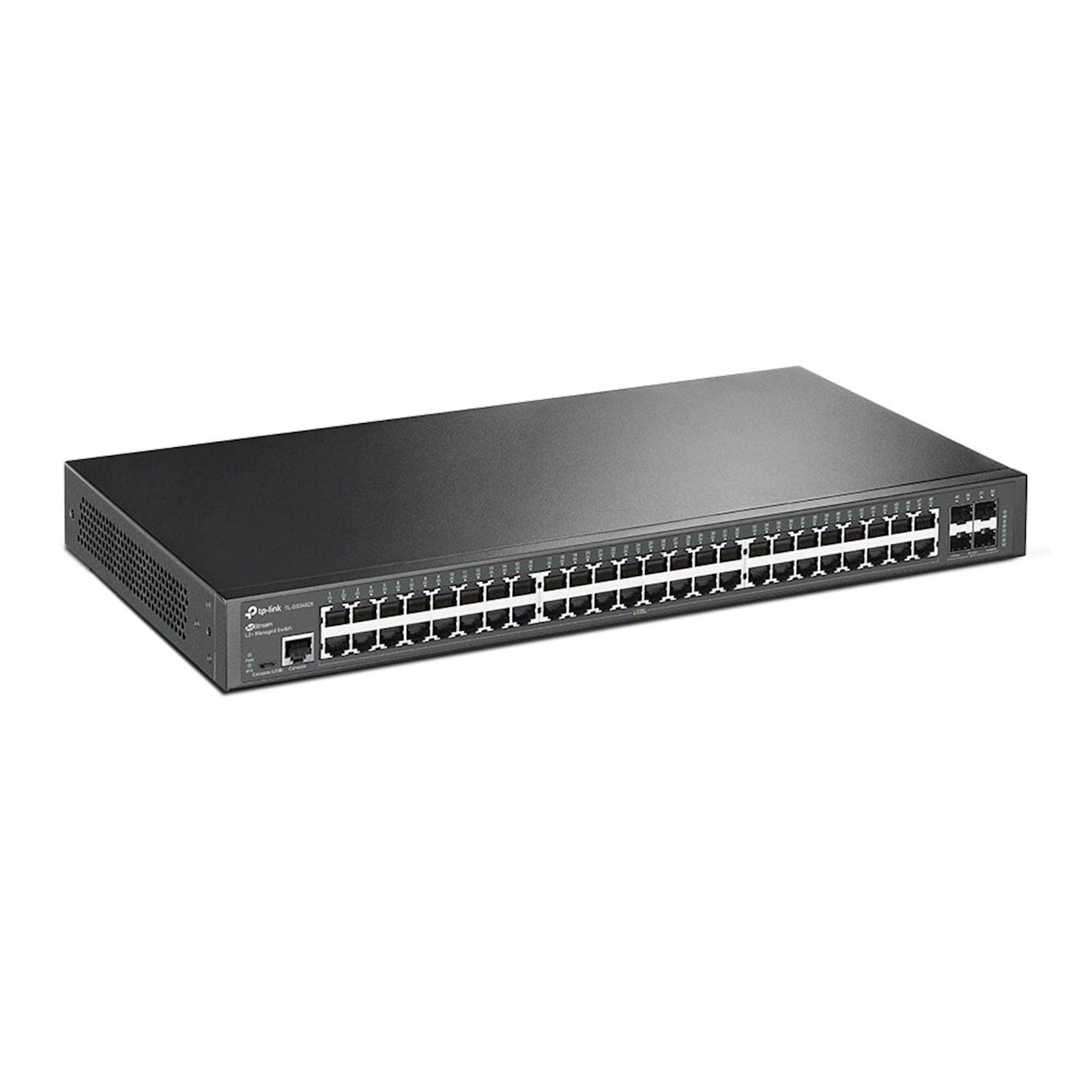

Omada 48-Port Gigabit L2+ Managed Switch 48× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port 1U 19-inch Rack-mountable Steel Case Integration with Omada SDN Controller
DETALJNE SPECIFIKACIJE:
| Number of Ports | 48 x 10Base-T/100Base-TX/1000Base-T (Ethernet/Fast Ethernet/Gigabit Ethernet) RJ-454 x (10 Gbps) SFP+ |
| Total Number of Ports | 52 |
| Switching Layers | Layer 2 |
| MAC Address Table Size | 16K |
| Network/Transport Protocol | IPv4 L2TP PPPoE TCP/IP UDP IPv6 ARP TFTP DHCP SNTP HTTPS SNMPv1 SNMPv2c SNMPv3 IGMP BOOTP Telnet DHCPv6 ICMPv6 IGMPv2 MLDv1 SSL RMON STP IGMPv3 SSH MLDv2 LLDP |
| Networking Compliant Standards | IEEE 802.1D(Spanning Tree Protocol) IEEE 802.1p(QoS) IEEE 802.1Q(VLAN) IEEE 802.1X IEEE 802.3ab IEEE 802.3ad IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3i IEEE 802.1s IEEE 802.1w IEEE 802.3ah IEEE 802.1ab IEEE 802.1d IEEE 802.3az MTU |
| Networking Features | DHCP Server Built-in Jumbo Frames Support DDoS Attack Protection Web Interface MAC address filtering Support for RADIUS authentication Access Control List IP/maC Binding Digital Diagnostic Monitoring (DDM) Small Form Pluggable Multi-Source Agreement (SFP-MSA) Storm Control Multicast & Broadcast Rate Limiting Port Mirroring Loop Protection |
| Vrsta | Plug-in modul |
| Postavljanje | Rackmount |
| Standard Rack Height | 1U |
| Standardi | CE, FCC, RoHS |
| Dodaci | Strujni kabel Brzi priručnik Mount kit Rubber Feets |
| LAN | 48 (RJ-45); 4 (SFP+) |
| Console Port | 1 (RJ-45); 1 (Micro USB) |
| Potrošnja | 32.72 W |
| Dubina (mm) | 440 mm |
| Visina (mm) | 44 mm |
| Širina (mm) | 220 mm |
| Boja | Crna |
| Max. radna temperatura | 50 °C |
| Max. radna vlažnost | 90 % |
| Min. radna temperatura okoline | 0 °C |
| Min. radna vlažnost | 10 % |
| Jamstvo u Hrvatskoj | Da |
| Jamstveni rok (mjeseci) | 60 mjeseci(a) |
| Validacija jamstva | Serijski broj |
| Bruto težina (kg) | 3.9 kg |
| Količina u pakiranju | 1 |
| Bruto težina kutije (kg) | 17 kg |
| Količina u kutiji | 4 |
| Vrsta pakiranja | Box |
| EAN kod | 6935364006471 |
