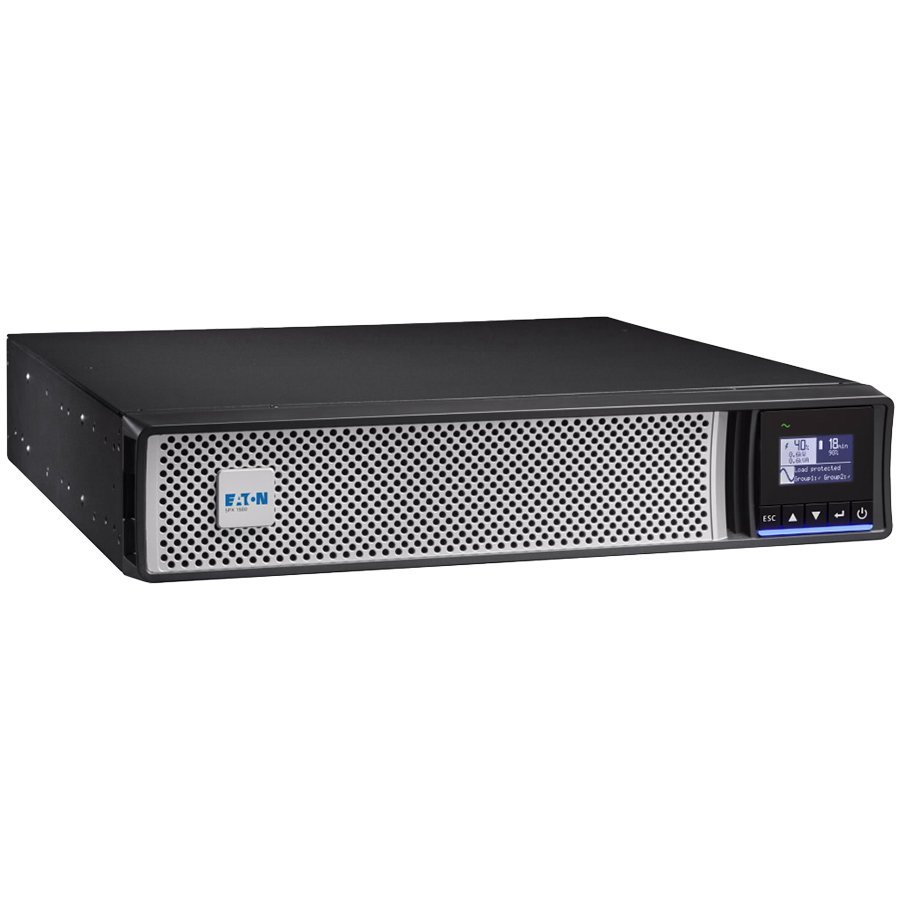

Eaton UPS 5PX Gen2 Rack 2U/Tower 1500W/1500VA; Input C14; Output C13x 8; Multilingual graphical LCD display; USB port; Serial port (RS232); Dry contacts (3 outputs, 1 input, optocoupler, DB9); Rack-mounting kit; 3Yr on electronics, 2yrs on battery
DETALJNE SPECIFIKACIJE:
| UPS Technology | Line Interactive |
| Output Power Capacity | 1500 W |
| Maximum Electrical Power Rating | 1500 VA |
| Nominal Output Voltage | 200/208/220/230/240 V |
| Status Notification Method | LCD |
| Power Features | Automatic Voltage Regulator Advanced Battery Management (ABM) |
| Output Waveform | Sinewave |
| Maximum Output Voltage | 240 V |
| Minimum Output Voltage | 200 V |
| Maximum Output Frequency | 60 Hz |
| Minimum Output Frequency | 50 Hz |
| Output Power Connectors Quantity | 8 |
| Output Power Connectors Type | IEC-320 C13 |
| Maximum Input Voltage | 294 V |
| Minimum Input Voltage | 150 V |
| Maximum Input Frequency | 70 Hz |
| Minimum Input Frequency | 47 Hz |
| Input Power Connectors Quantity | 1 |
| Input Power Connectors Type | IEC-320 C14 |
| Maximum Battery Supported Quantity | 4 |
| Battery Backup Time at Full Load | 14 min |
| Expansion Slot Quantity | 1 |
| Maximum Operating Ambient Temperature | 40 °C |
| Minimum Operating Ambient Temperature | 0 °C |
| Max. Altitude Operating | 3000 m |
| Typical Operating Noise Level | 40 dB |
| External Color | Black/Silver |
| Mounting Capability | Desktop |
| Standard Rack Height | 2 U |
| Included Accessories | Quick Start Guide Mount kit Safety Sheet |
| Cable Included | Serial Cable USB Cable IEC Cable |
| Depth (mm) | 448 mm |
| Height (mm) | 85.5 mm |
| Width (mm) | 438 mm |
| Nominal Weight | 22.4 kg |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 36 month(s) |
| Warranty validation Criteria | Serial Number |
| Pack Weight Brutto (kg) | 25 kg |
| Pack Weight Netto (kg) | 23 kg |
| Pieces in pack | 1 |
| Box Weight Brutto (kg) | 25 kg |
| Retail Packaging Net Weight Carton | 1 kg |
| Retail Packaging Net Weight Plastic | 1 kg |
| Packs in Box | 1 |
| Package Type | Box |
